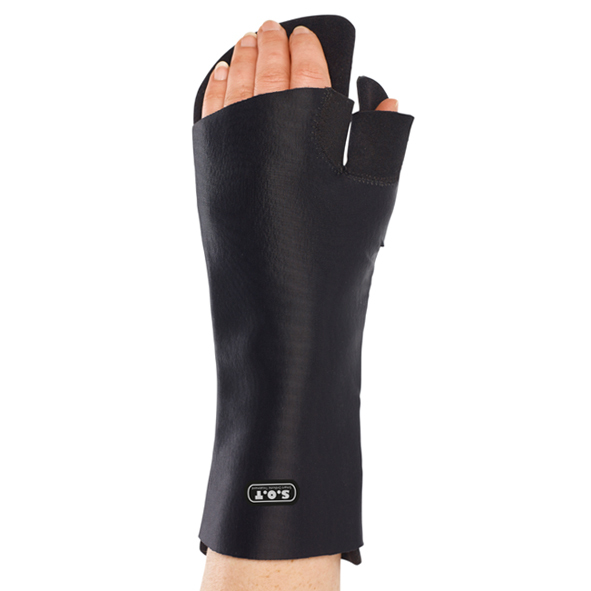

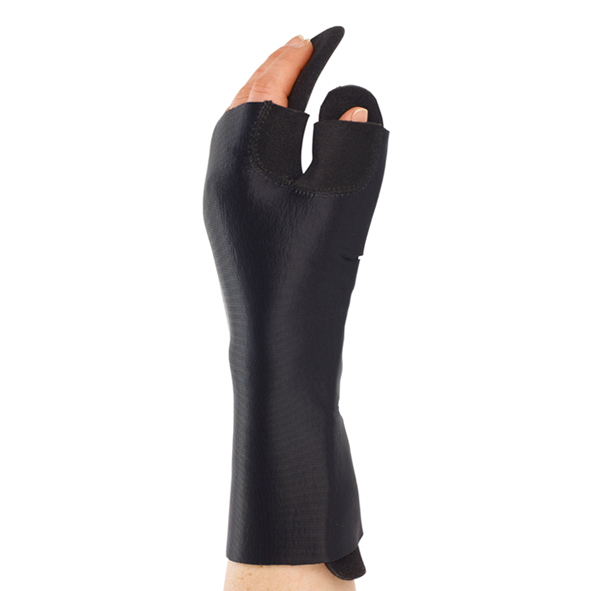

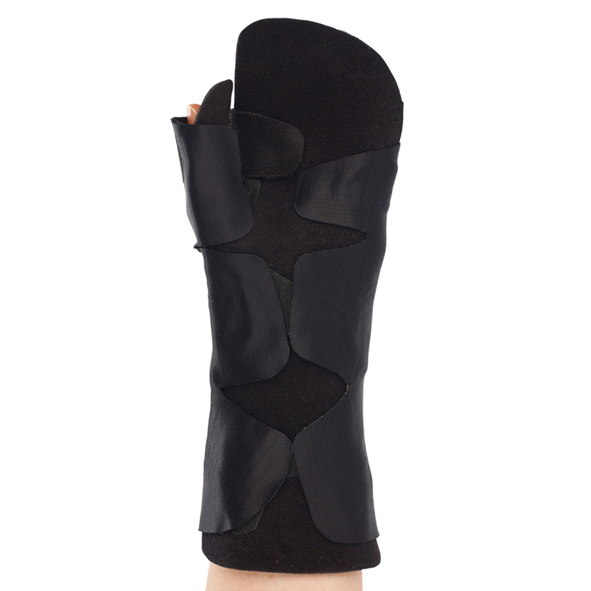

SOT Resting Splint

SOT (Smart Orthotic Treatment) is a resting splint for the spastic and paretic hand, when the goal is to maintain or increase the mobility of the hand.The orthosis is smooth and lightweight. The S.O.T has an aluminium core which allows adjustment to the desired position. The aluminium core is embedded into polyethylene foam, which is covered with fabric. The brace is delivered in aresting position. A resting position can offer pain relief, relaxation to the hand and it also provides a good biomechanical position that may reduce the risk of flexor shortening of the wrist and fingers.The orthosis anatomic configuration supports the important thenar muscle, the CMC- and MCP joint, which is particularly important for the intended patient groups, when the thumb tends to adduct in the CMC joint and hyperextend in the MCP joint. SOT Resting splint increases the conditions for an effective grip.

Recommended Range Of Application

Stroke, CP, rheumatoid arthritis, radialis paresis,muscular dystrophy, edema or plexus injury.

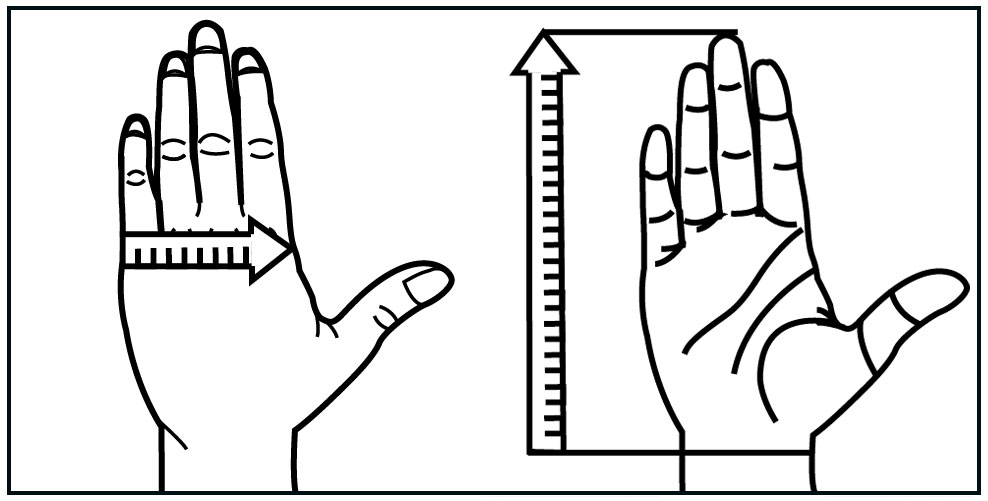

Measurement

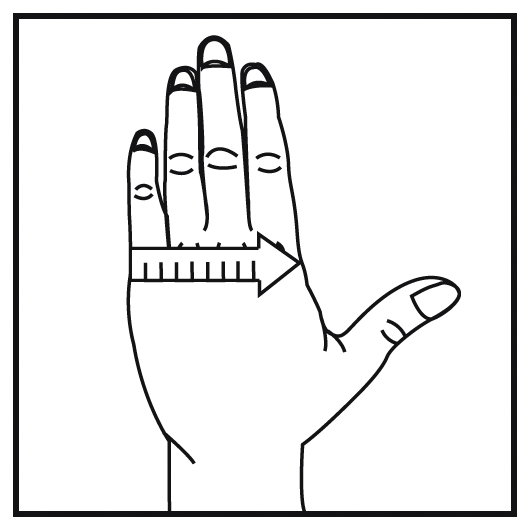

Measurement text 1: MCP Width
Measurement text 2: Length from wrist to end of finger

Other

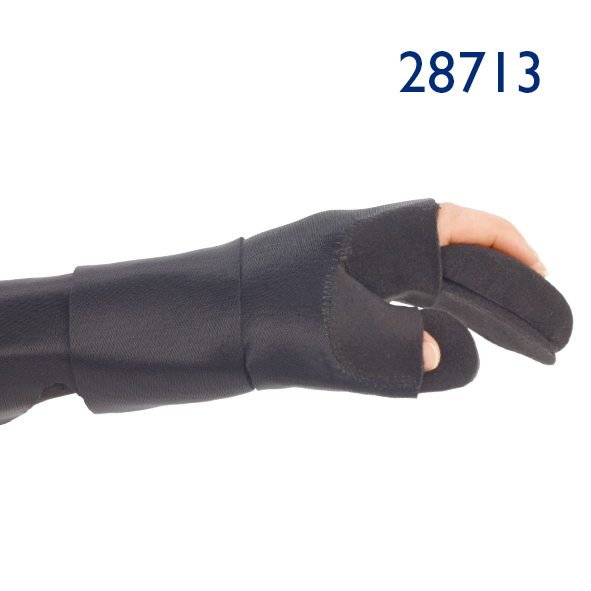

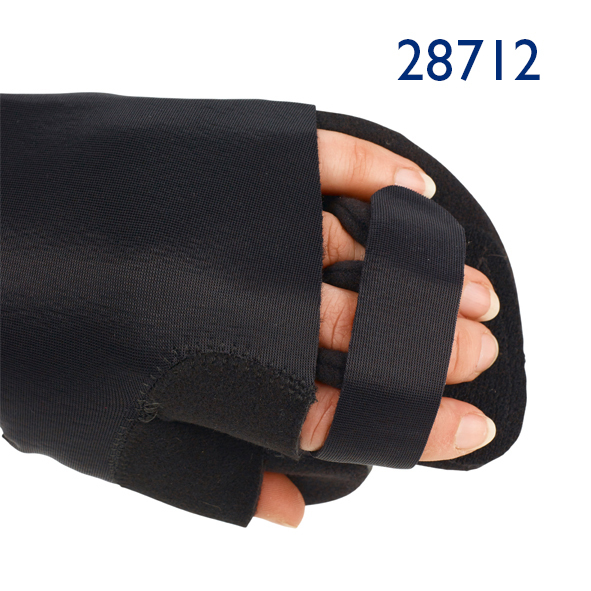

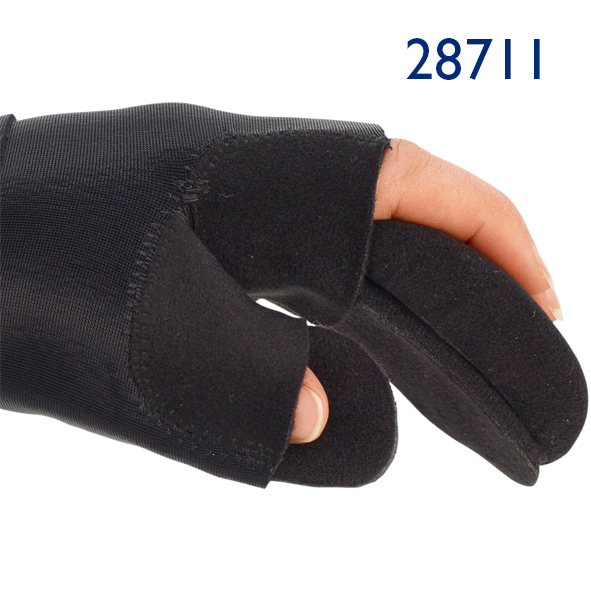

Besides the extra wrist band , there are two other accessories; a finger divider and wedges in three different sizes.

Item No. Model Size L/R Color Measurement 1 Measurement 2
287101008 SOT Resting Splint XXX-Small Left Black 5,5 cm ≤ 12 cm
287101009 SOT Resting Splint XX-Small Left Black ≤ 6,5 cm ≤ 14 cm
287101010 SOT Resting Splint X-Small Left Black ≤ 7,5 cm ≤ 16 cm
287101011 SOT Resting Splint Small Left Black ≤ 7,5 cm ≤ 18,5 cm
287101012 SOT Resting Splint Medium Left Black ≤ 8,5 cm ≤ 20 cm
287101013 SOT Resting Splint Large Left Black ≤ 9 cm ≤ 21 cm
287102008 SOT Resting Splint XXX-Small Right Black 5,5 cm ≤ 12 cm
287102009 SOT Resting Splint XX-Small Right Black ≤ 6,5 cm ≤ 14 cm
287102010 SOT Resting Splint X-Small Right Black ≤ 7,5 cm ≤ 16 cm
287102011 SOT Resting Splint Small Right Black ≤ 7,5 cm ≤ 18,5 cm
287102012 SOT Resting Splint Medium Right Black ≤ 8,5 cm ≤ 20 cm
287102013 SOT Resting Splint Large Right Black ≤ 9 cm ≤ 21 cm
287110009 MCP Wedge XX-Small Bilateral Black Width 65 mm Height 10 mm
287110011 MCP Wedge Small Bilateral Black Width 75 mm Height 15 mm
287110013 MCP Wedge Large Bilateral Black Width 90 mm Height 20 mm
287120003 Finger divider Children Bilateral Black - -
287120005 Finger divider Medium Bilateral Black - -
287120007 Finger divider Large Bilateral Black - -
287130009 Extra strap XXX-Small-X-Small Bilateral Black - -
287130012 Extra strap Small-Large Bilateral Black - -

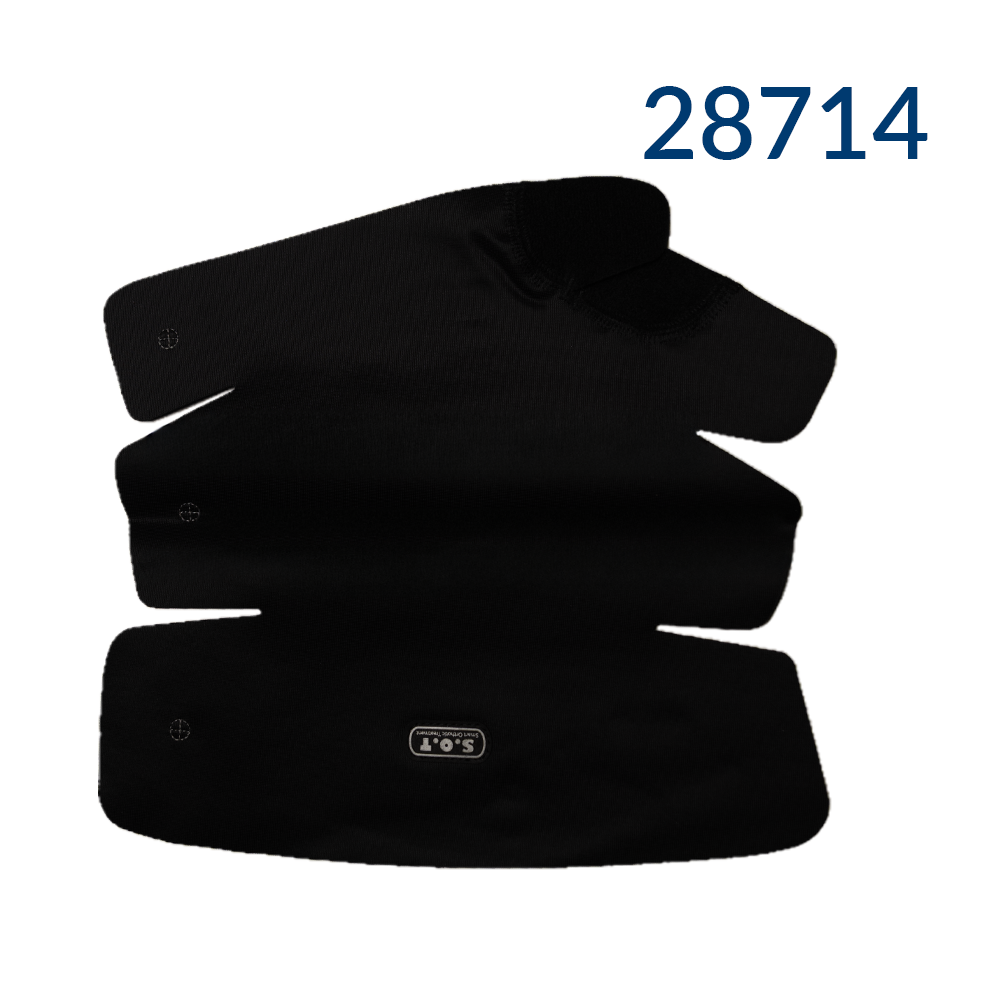

287141008 Extra cover XXX-Small Left Black - -
287141009 Extra cover XX-Small Left Black - -
287141010 Extra cover X-Small Left Black - -
287141011 Extra cover Small Left Black - -
287141012 Extra cover Medium Left Black - -
287141013 Extra cover Large Left Black - -
287142008 Extra cover XXX-Small Right Black - -
287142009 Extra cover XX-Small Right Black - -
287142010 Extra cover X-Small Right Black - -
287142011 Extra cover Small Right Black - -
287142012 Extra cover Medium Right Black - -
287142013 Extra cover Large Right Black - -

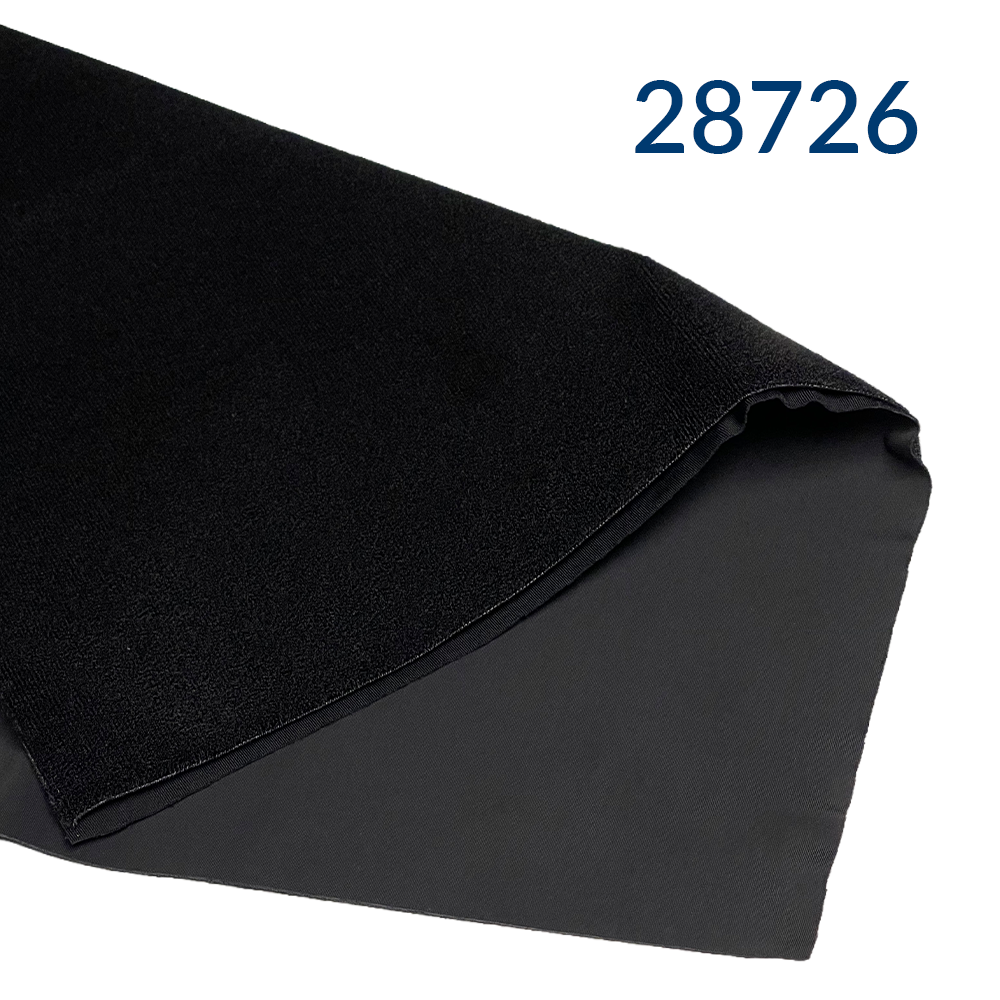

287260000 SOT Fabric 35 x 35 cm - Black - -
SOT Resting Splint Initial Fitting Play video
SOT Resting Splint Initial Fitting
SOT Resting Splint From Resting to Position of Safety Play video
SOT Resting Splint From Resting to Position of Safety
SOT Resting Splint – Fitting the wrist strap Play video
SOT Resting Splint – Fitting the wrist strap
SOT Resting Splint – Fitting the wedge Play video
SOT Resting Splint – Fitting the wedge
SOT Resting Splint – Fitting Finger Divider Play video
SOT Resting Splint – Fitting Finger Divider
SOT Resting Splint Fitting a contracted hand Play video
SOT Resting Splint Fitting a contracted hand
